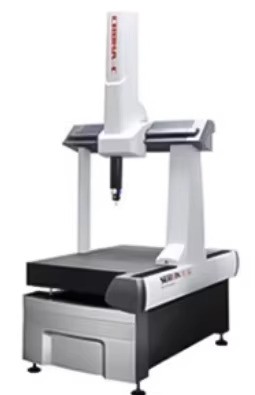

Coordinate Measuring Machine

The Coordinate Measuring Machine (CMM) is a cutting-edge precision tool designed to capture accurate 3D geometric data of physical objects, making it a cornerstone of quality control in modern manufacturing. By measuring the X, Y, and Z coordinates of points on a workpiece, it delivers reliable insights into dimensions, shapes, and positional accuracy—critical for ensuring components meet design standards.​
Core Functions & Advantages​
1. High-Precision 3D Measurement​
Equipped with a movable probe (contact or non-contact, e.g., laser), CMM achieves measurement accuracy down to micrometer levels (often ±2 μm or better). It easily handles complex parts—from small electronic components to large automotive frames—capturing details like holes, curves, and surface flatness that manual tools miss.​
2. Efficiency & Versatility​
With user-friendly software, CMM streamlines measurement workflows: pre-set templates for common parts (gears, bolts) cut setup time, while custom programs adapt to unique components. It works across materials (metal, plastic, composite) and industries, fitting both lab testing and factory-floor inspection.​
3. Reliable Data for Quality Control​
CMM generates traceable, digital data—no more manual note-taking errors. Its software auto-analyzes results, flagging deviations from design tolerances and creating clear reports. This helps reduce rework, ensure consistent production, and meet industry standards (ISO, AS9100).​
4. Durable for Industrial Use​
Built with stable bases (granite often) and protective enclosures (IP54/IP65), CMM resists factory vibrations, dust, and coolant. Temperature compensation tech keeps accuracy steady even in changing workshop conditions (5°C–40°C).
